SEM 816 Track type tractor / Bulldozer

Product Categories

Changyi Industrial (Shanghai) Co.,LTD.

Contact Now

Place of Origin : China

Brand Name : SEM

Certification : ISO9001

Model Number : SEM816

MOQ : 1unit

Packaging Details : Null

Delivery Time : 5 working days

Payment Terms : T/T or L/C at sight or western union

Contact Now

Parameters

Model	SEM816
Operating Weight	17230KG
Ground Pressure	68 kPa
Ground Clearance	410mm
Max. Slope	30°
Engine
Model	Weichai WD10G178E25
Flywheel Power	120kw /160hp
Working Tool
Blade Type	SU (S Blade is Option)
Blade Capacity	4.3m³ (S 3.4m³)
Blade Width	3140mm(S 3490mm)
Blade height	1240 mm (S 1165mm)
Max. Blade Digging Depth	430mm
Max. Blade Lift Ground Clearance	1041mm
Max. Output Rimpull	280kN
Max. Digging Depth of Ripper	584mm
Max. Clearance Under Tip	615mm
Powertrain
Type	Electronic control, Dual-path, Hydrostatic Drive
Travel Speed-F/R	0-10 km/r (Infinitely Variable Speed Control)
Steering &Brake	Hydrostatic steering, wet, Multiple- Disc Brakes
Min. Streeing Radius	3610 mm (Counter-rotatedavaliable)
Undercarrige
Track Shoe Width	510mm
Track Shoe Quantity	37 pieces
Length of Track on ground	2430 mm
Track Gauge	1880 mm
Track Roller Quantity	6 / side
Carrier Roller Quantity	2 / side
Hydraulic System
Type	Pilot Control
Implement Hydraulic System Pressure	19 Mpa
Service Refill Capacities
Cooling system	45 L
Hydrostatic oil	40L
Implement Oil	60L
Fuel	320L
Pivot Shaft Case (each side)	1.2L

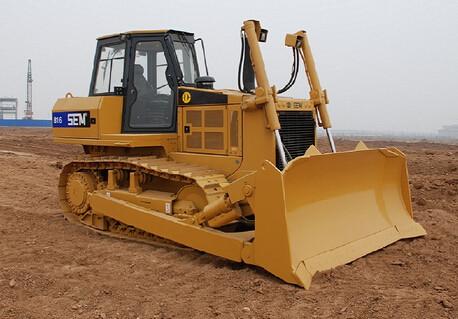

SEM 816 Track type tractor / Bulldozer Images
